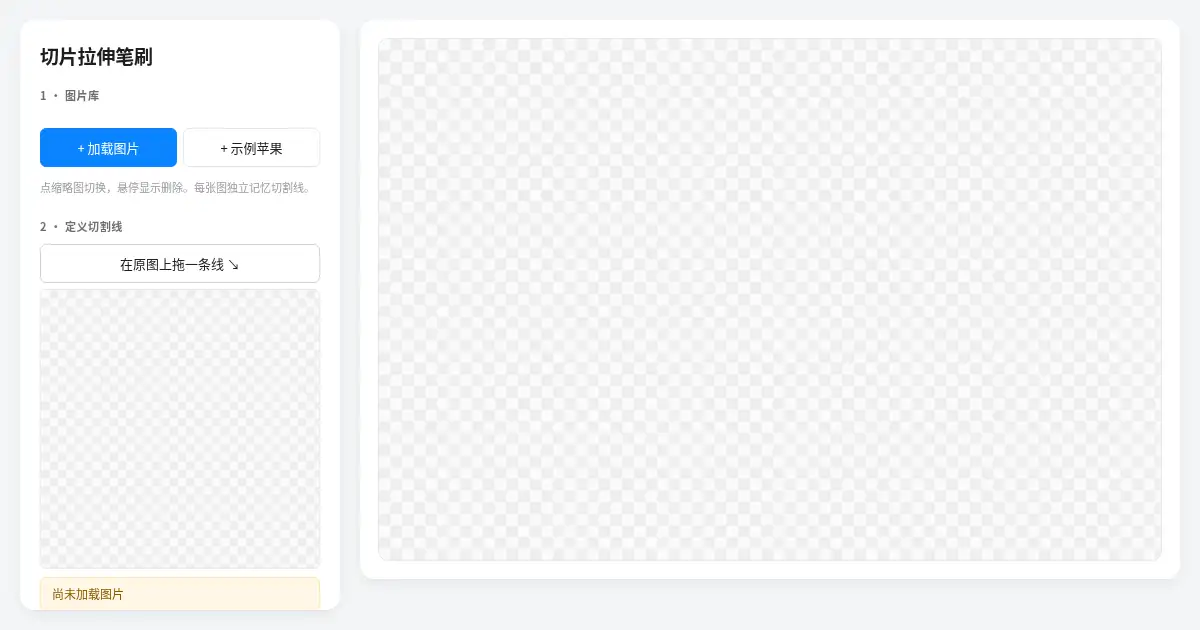

A free image processing demo — play it in your browser, no install. 把图片切一刀,拖出胶囊,沿轨迹弯曲当笔刷写字 · single-file HTML5 Canvas demo
Vote and save it — continue with GitHub or sign in free
Made this, @AppApp777? See how many people played it → or use email
GitHub asks to share your profile and email with us. We never post anything.
No account needed to save ♥ or react 🔥: they’re under the game. Or vote with email.
Open the live demo Source on GitHub当前版本 v0.5 · 最后一次代码改动 2026-05-20 · 全部产品就是一个 index.html,1330 行。
把源图绕切割中点旋转 -cutAngle,存到一个 diag × diag 的内部 canvas(diag = 原图对角线)。关键不变量:在这个内部 canvas 里,切割线一定是水平线 y = diag/2,之后所有渲染都基于这个不变量。
路径每 1.5 px 采样一点。中段不是“相邻两点画一片”,而是沿路径每 STAMP_STEP = 0.4 px 盖一个 W × 2 px 的矩形 stamp,drawImage(midRow, …) 配合 ctx.rotate(切线方向)——相邻 stamp 沿切线重叠 1.6 px,密铺无空隙。
绕这么大弯是被逼的:早期版本用 ctx.clip() 裁梯形(后来换 affine 三角形)拼接,而 clip path 本身是 1-bit 栅格化——浮点端点四舍五入到不同像素,相邻段的公共边永远漏出白色细缝,重叠量调多大都没用。stamp 方案彻底不碰 clip、不碰 affine 变换,也就不存在栅格化边界。三轮踩坑的完整过程见 BUGS.md。
横截面 + 上下半截高度按 scale 缩放,中段长度始终等于鼠标拖距——这样调粗细不会影响“拉多长”的手感。
